Kind Of Pipe Nipples

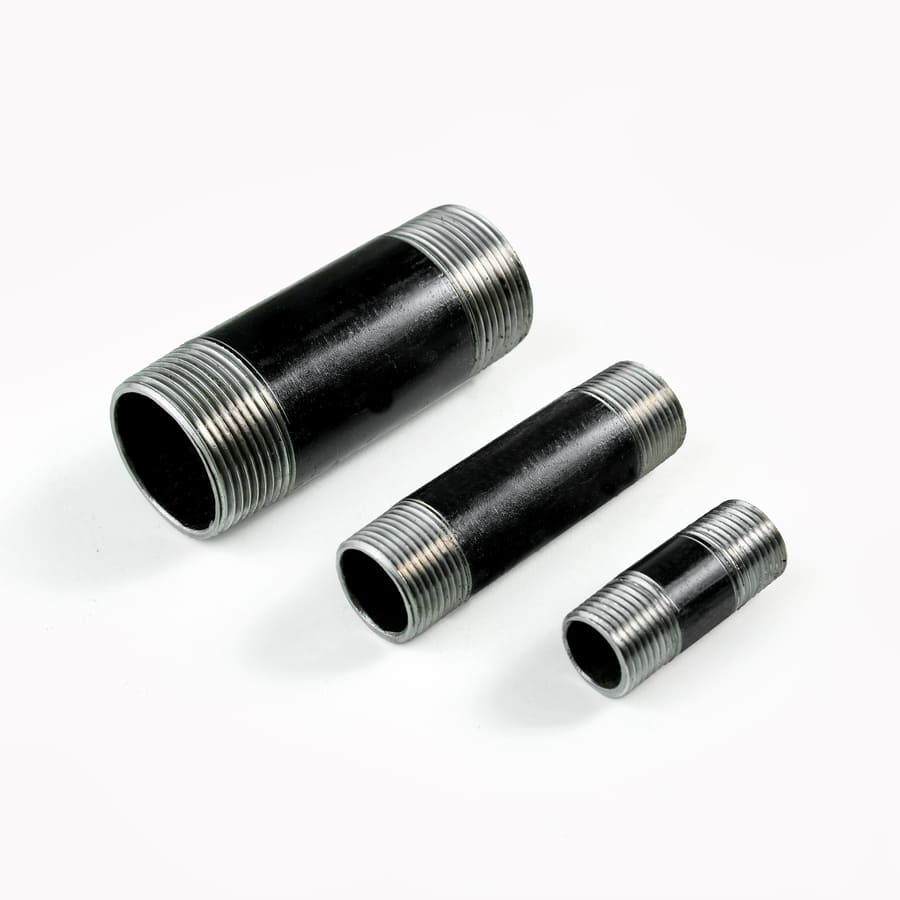

T.B.E Pipe Nipple

T.B.E stands for threaded both ends. These kind of pipe nipples are very popular in industry. We are currently producing pipe nipples under specification:

• For American Standard: Product standard refers to ASTM A733 and threads conforms to ASME-B1-20-1_2013

• For British Standard: Product standard refers to EN10241 Heavy and Medium Series and thread conforms to ISO 7-1. Thistype of pipe nipple is commonly known as Barrel Nipple.

• Available in range of size from NPS ¼” to 6” and maximum of 96” in length.

• Available in black and hot dip galvanized with min. 77 µ for ASTM A53 American Standard and min. 45 µ for EN10255 British Standard

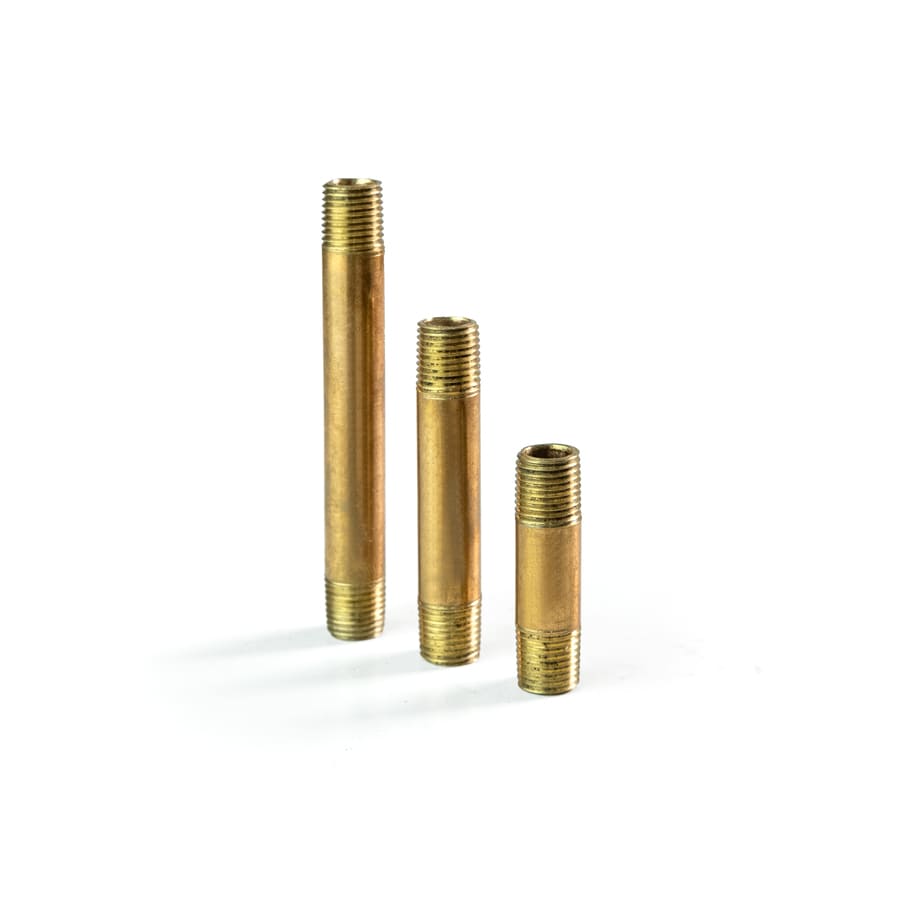

• For Brass Pipe nipples refers to ASTM B687 and threads conforms to ASME-B1-20-1_2013

Close Pipe Nipple

A close nipple has no unthreaded area which means that when two female fittings are screwed tightly onto both ends of the nipple, very little of the nipple will still be exposed. We are currently producing pipe nipples under specification:

• For American Standard: Product standard refers to ASTM A733 and threads conforms to ASME-B1-20-1_2013

• For British Standard: Product standard refers to EN10241 Heavy and Medium Series and thread conforms to ISO 7-1. This style of nipple is commonly known as Barrel Nipple

• For Brass Pipe nipples refers to ASTM B687 and threads conforms to ASME-B1-20-1_2013

T.O.E Pipe Nipple

T.O.E stands for threaded one end. This kind of nipple is typically used as legs for oil tanks. We are currently producing this type of pipe nipple under ASTM A733 standard, and threads conforms to ASME-B1-20-1_2013.
